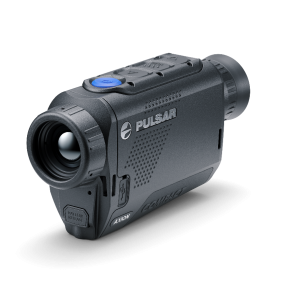

Pulsar Axion Compact XQ19 1.5-6 thermal monocular 77517
Product ID : PL77517
Sale Price: $999.97
Compared at: $1,199.99
You Save: $200.02
Purchase
Product is out of stock
Manufacturer: Pulsar
Weight: Free Shipping
Description
The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.
Enter the world of thermal vision with the Pulsar Axion Compact thermal imaging monoculars. Pulsar's most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.
Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.
A quick glance at the Pulsar Axion Compact lineup:

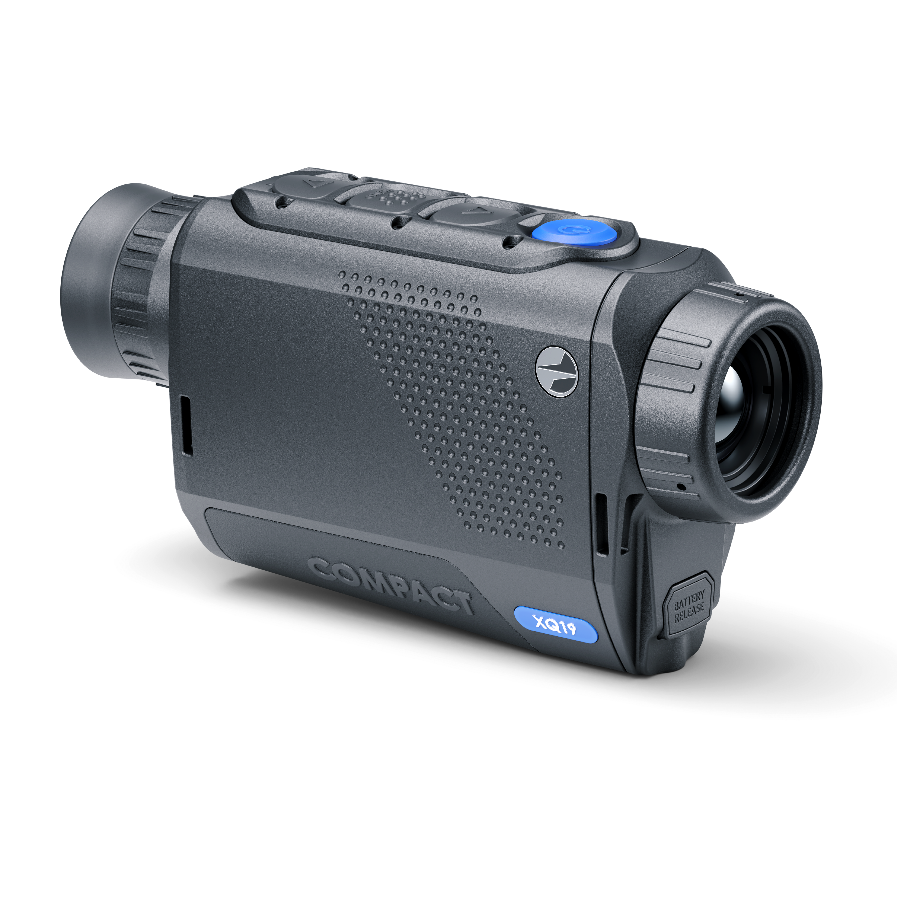

PULSAR AXION COMPACT XQ19
The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.
Main specifications
Sensor
@ 17 µm 384x288
Objective lens
F19 / 1.0
Magnification, x
1.5 - 6 (x4 digital zoom)
FOV (HxV), degrees
19.5 x 12.3
FOV (HxV), m@100m
34.7 x 21.5
Diopter Adjustment, D
+4/-5
Detection range
750
Sensor
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
Sensor NETD, mK
< 25
System NETD, mK
< 18
Frame rate, Hz
50
Optics
Objective lens
F19 / 1.0
Magnification, x
1.5 - 6 (x4 digital zoom)
FOV (HxV), degrees
19.5 x 12.3
FOV (HxV), m@100m
34.7 x 21.5
Diopter Adjustment, D
+4/-5
Eye relief, mm
14
Display
Type
AMOLED
Resolution, pixels
640x400
Range performance
Detection range, m
750
Video recorder
Video / photo resultion, pixel
960х600
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac
Environmental characteristics
Degree of protection
IP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40
Connections and compatibilities
Mount type
1/4" socket
Supported application
Stream Vision 2
Power supply
Output voltage, V
3.0 – 4.2
Battery type
APS 3 Li-ion Battery Pack
Capacity, mAh
3200
Operating time on battery pack, h
at t=22°С
8
External power supply, V
5 (USB Type C)
Weight & size
Body material
Aluminum alloy
Dimensions, mm
134.5х38х71
Weight, kg
0.25 (without battery)
SKU
77517
