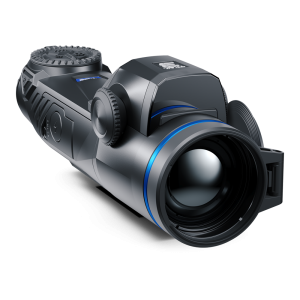

TRAIL 3 LRF XQ50
Built for short- to mid-range shooting in challenging conditions such as fog, humidity, or low-contrast environments. It delivers clear, stable images to help you spot and track targets reliably, even when visibility is limited.
DELIVERING PRECISION
Compact and rugged Trail 3 LRF riflescopes built are for professional hunters, forestry specialists and pest control operators. Monoblock design and multi-point Pulsar prism ensure robustness and firm mounting on rail mounts. Top quality thermal imaging combined with precise laser rangefinder and ballistic calculator offers excellent image while ensuring shooting precision.
Customizable user mode for individual image adjustment
Optimize image quality for any observation conditions with brightness and contrast
adjustments, enhancing detail and clarity. The User Mode function saves your
preferred settings, ensuring the thermal imager delivers optimal performance
right from the start without the need for readjustments.
Full HD extra crisp AMOLED screen
Experience sharp, detailed thermal imaging on a bright Full HD 1920×1080 AMOLED microdisplay, making it easier to spot and track targets in any conditions.
Round-shaped Picture-in- Picture mode
Trail 3 possesses new round-shaped Picture-in-Picture mode. It displays a circle around reticle area. Digital zooming is limited to this area only, allowing to simultaneously zoom on target and seeing remaining field of view.
Monoblock housing design
Robust monoblock housing keeps the riflescope rigid under recoil and rough use, delivering reliable performance and consistent accuracy in every hunting situation.
Built-in laser rangefinder
Measure distances quickly and accurately up to 1200 m with a powerful laser rangefinder. Switch between scanning and single-shot modes to assess range instantly and plan your next move with confidence.
Integrated ballistic calculator
Get precise aiming guidance with an integrated ballistic calculator that shows corrections on-screen based on your personalized ballistic profile, helping you make accurate shots at any measured distance.
High recoil resistance
Handle heavy recoil without losing performance, supporting powerful calibers up to .375 H&H while remaining fully compatible with smoothbore and pneumatic firearms.
Ergonomic controls
Operate all functions effortlessly with buttons positioned close to your hand, two customizable shortcuts, and an intuitive circular encoder, so you can make adjustments quickly while staying focused on the hunt.
Recoil activated video recording
Capture every shot automatically with recoil-activated video recording, adjustable across three sensitivity levels to match any caliber setup.
New graphic interface
Navigate settings quickly with an intuitive interface that ensures clear visibility and easy access to key functions. Spend less time adjusting and more time observing, tracking, and making confident decisions in the field.
Quick-change rechargeable battery
For power, Trail 3 LRF is equipped with the quick-change, long-life Pulsar LPS7i rechargeable battery pack. The modular battery design allows the pack to be replaced in seconds in the field, ensuring uninterrupted operation during extended use. The battery can be conveniently recharged either inside the device or separately via the integrated USB Type-C port, providing flexible charging options from power banks, vehicle outlets, or standard chargers.
Other Features
- 9 color palettes
- 3 display shapes
- 10 reticle shapes
- 10 zeroing profiles
- Side incline indication
- Elevation angle indication
- Stream Vision 2 support
- Stream Vision Ballistics support
- Multipoint Pulsar mounting prism
- Automatic display deactivation
- Quick-change rechargeable battery
- Shadow recording (DVR style records before the shot)
Main specifications
Sensor
@ 17 µm 384x288/17µm
Magnification, x
3.5 - 14
Diopter Adjustment, D
-5 / +5
Reticle
Click range, H/V, mm at 100m
1800/1800
Click value, H/V, mm at 100m
9.1
Number of preloaded reticles
10
Sensor
Type
Thermal uncooled, microbolometric
Resolution, pixels
384x288/17µm
Sensor NETD, mK
read here." aria-expanded="false">
< 25
System NETD, mK
read here." aria-expanded="false">
< 15
Optics
Magnification, x
3.5 - 14
Diopter Adjustment, D
-5 / +5
Display
Resolution, pixels
1920x1080
Laser rangefinder
Max. measuring range, m
1200
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Video recorder
Video / photo resultion, pixel
1440x1080
Video / photo format
.mp4 / .jpg
Bluetooth
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
WI-FI
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Environmental characteristics
Degree of protectionIP code (IEC60529)
IP67 (waterproof)
Operating temperature range, °С
-25 – +50
Connections and compatibilities
Compatible mounts
Multi-point prism
Supported application
Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber
12
Max. recoil power on rifled weapon (Eo), Joules
6000
Power supply
Output voltage, V
4.2-3.0
Operating time on battery pack, hat t=22°С
12h
External power supply, V
5V/9V USB Type-C
Weight & size
Body material
Magnesium alloy
