Hog Saddle Newest Aluminum Field Tripod Extreme XB 52mm ball 132lb complete kit

Product ID : HOGLEGSUN52ballkitAlum

Sale Price: $799.99

Compared at: $899.99

You Save: $100.00

Purchase

Product is out of stock

Manufacturer: Shadow Tech LLC

Weight: Free Shipping

0 review(s)

Description

Complete kit includes:

Hog Saddle
Sunwayfoto XB 52EG ball head
Shadow Tech (3/8 and 1/4) no twist QD plate
Shadow Tech Pig0311-G Field Tripod (2023 Latest Model)

The MOD7 is currently a standard issue item in the US Marine Corps and other various Special Operations Units.

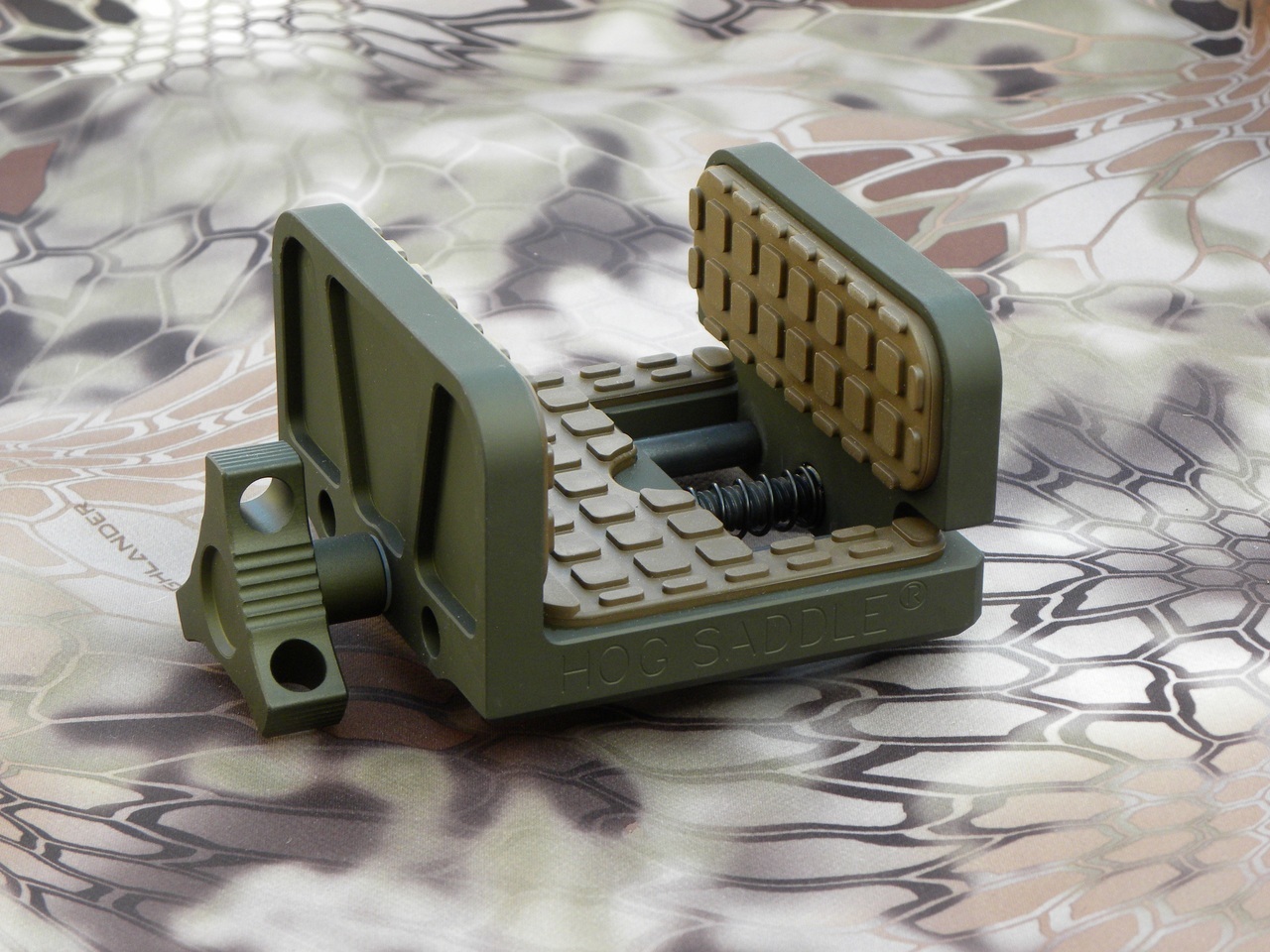

MOD7 HOG Saddle Specs:

CNC machined from a solid block of aluminum
Black oxide stainless steel bolt and guide rods
Hard anodized finish (a resilient surface which serves as an excellent base coat for custom camouflage paint)
1/4-20 stainless steel mounting threads and 3/8-16 back up threads
CNC machined torque knob assembly with retention button screw to prevent disassembly in the field (opens 1/4in wider than previous model)
Stainless steel noise dampening tension spring
1/4 inch thick, recessed urethane pads specifically engineered to absorb rifle recoil and reduce muzzle jump
Anti-rotation slots to accept tripod QD plates that have video pins
Superior resistance to corrosion
Weight: 15.8oz

The Sunwayfoto GNN XB-52EG Low-Profile Ball Head with Duo-lever Clamp
Based on XB-52 and replaced the Screw-Knob Clamp with DLC-50 Screw/Lever Combo Clamp. The screw knob side is for adjusting the width of the clamp, and the lever side is for locking the clamp quickly. The XB-52EG Low Profile Ball Head from Sunwayfoto is the larger of two ball heads in the XB line of low profile ball heads from Sunwayfoto. It features a very low center of gravity, very high load capacity of 132 pounds and improved ball head design for smoother movements when changing position. It includes the two-drop-notch design for camera orientation and weighs only 1.60 pounds.

Features include:

Locking System is located on the side of the ball instead of the bottom of the ballhead. Whole center of gravity is lowered more than 15%;
Adopts geared locking structure, higher locking strength;
Specially designed panning base, smooth operation;
Elliptical ball for progressive resistance and avoiding suddenly sliding down;
Two drop notch design. One for portrait, one for tilting;
All metal knobs for reliability and long term durability;
Two set spirit level mounting holes for users to mount the removable spirit level to the other sides of the clamp;
Special structure makes it the lightest of its class.
360° panning movement with calibrated precision, precisely capture overlapping panoramic images
Compatible with Really right stuff (RRS), Wimberley, Jobu Design, Arca Swiss, Kirk Enterprises, Markins, Photo Clam etc.
Ideal for Gitzo, SLIK, Manfrotto, Sirui, Benro, RRS tripod.

Model	GNN XB-52DL
Ball Diameter	52mm
Pan Base Diameter	68mm
Height	3.33 Inches
Weight	1.60 Pounds
Max Load	132 Pounds
Bottom thread	UNC 3/8″-16
Clamp Type	Screw/Lever Combo Clamp 38mm Arca-Swiss

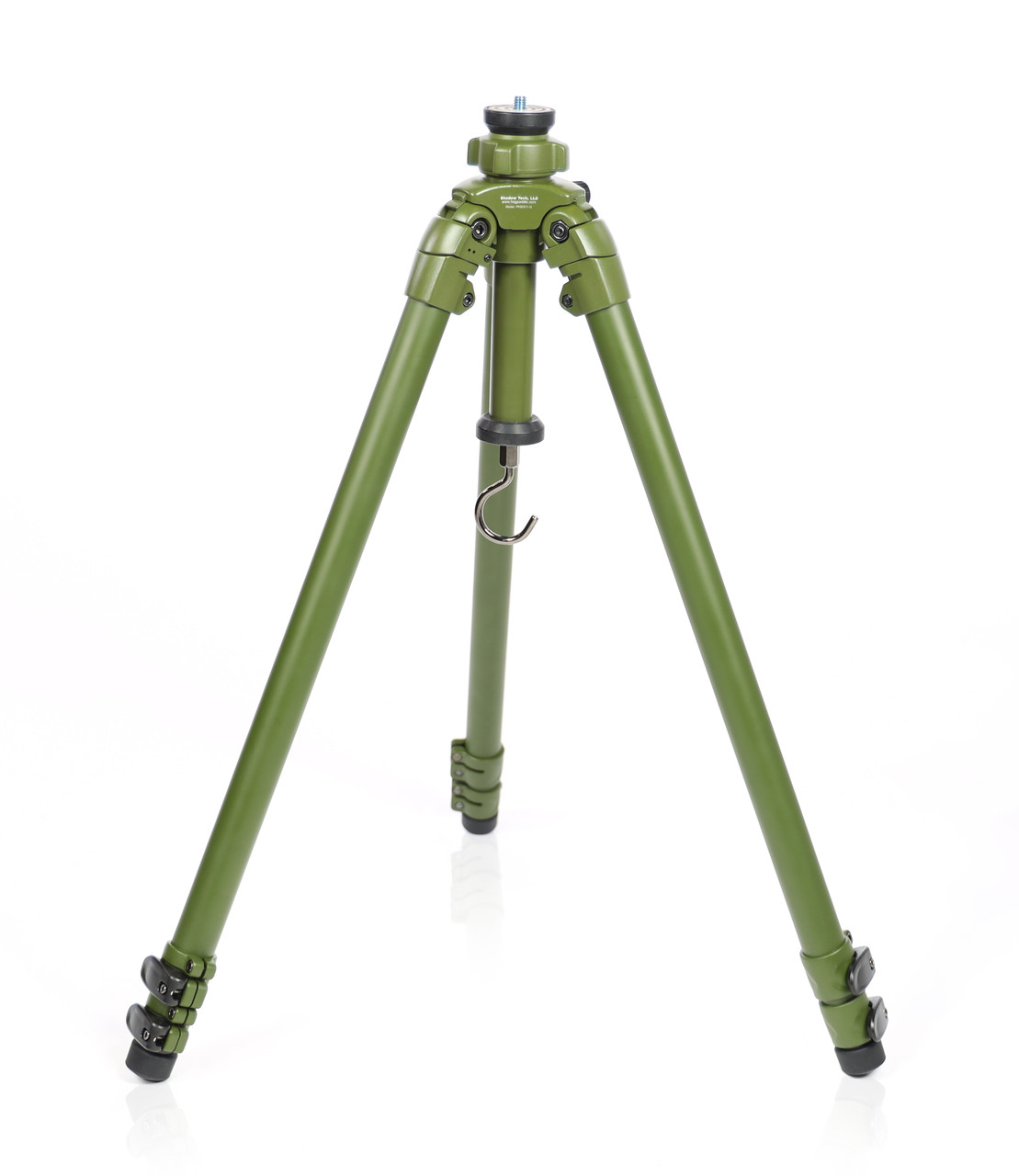

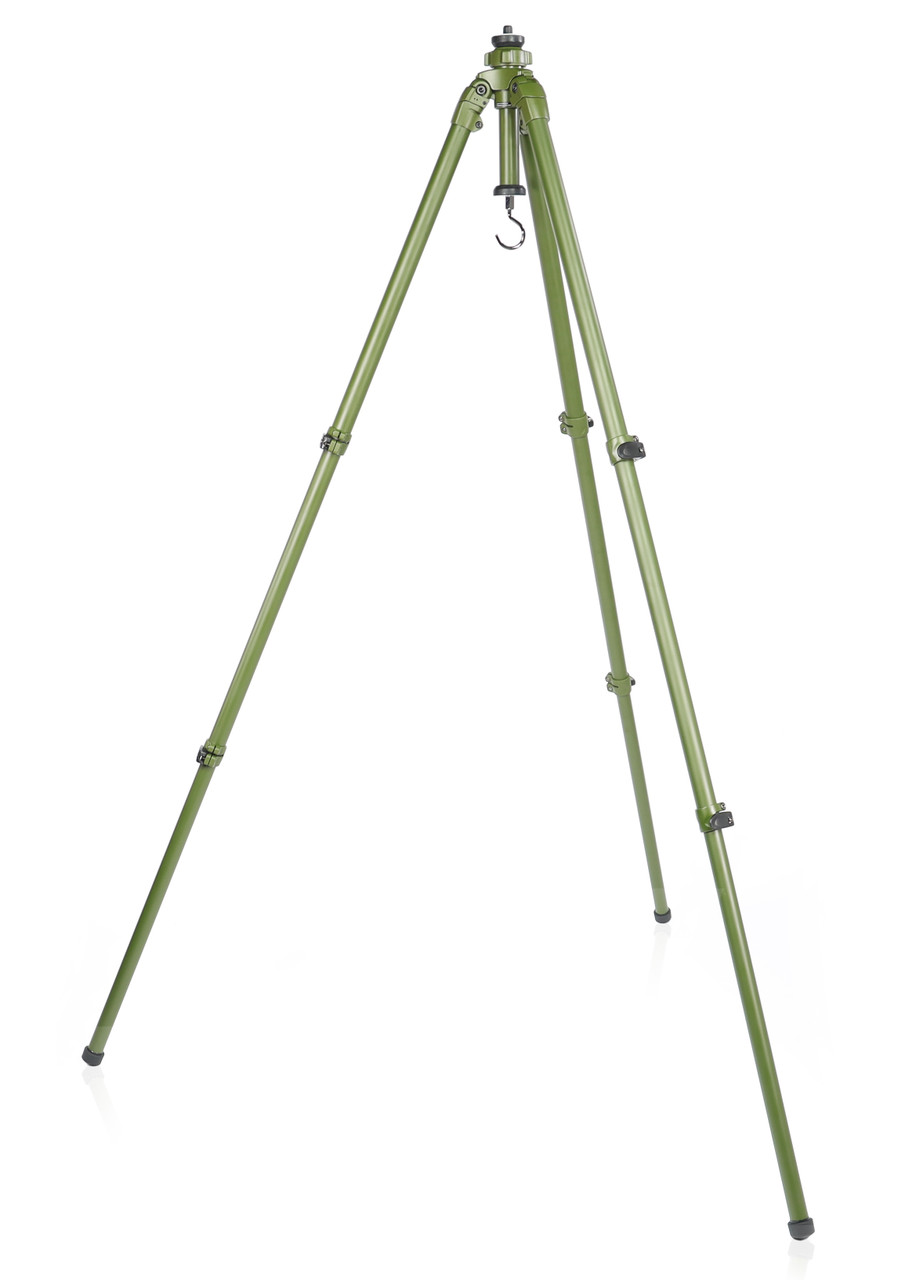

PIG0311-G Field Tripod

"The Grunt of Tripods"

NEW PRICING for 2023: Due to price increases on raw materials, Shadow Tech unfortunately had to modify their retail pricing. To make up for this price increase, They doubled the strength of the leg stop shims, and updated the leg locks to be user-adjustable. The new leg locks are stronger and increase the load rating to 34 lbs. All other features will remain the same.

*PIG0311-G shooting tripod is sold as the tripod legs alone. A Saddle or ball head would be an additional purchase.*

The PIG0311-G Field Shooting Tripod is based off of the budget friendly and capable SLIK DX700 PRO tripod. We partnered up with SLIK, and started putting together several prototypes with beefed up specs, tighter tolerances, and shooter specific features. After 8 months of testing , we came up with the PIG0311 Field Shooting Tripod. During testing, we used several .50 caliber rifles (Barrett M107 & McMillan Tac50) with great results from officer feedback and reported repeatable shot placement. Being unsure of what kind of garage cannon that might be placed on the tripod itself, we decided on a conservative 34 pound load rating. The PIG0311-G was designed for the active outdoorsman; meant to get dirty, thrown in trucks, and used outside often. Paired with a direct mounted HOG Saddle® or PIG Saddle®, this shooting tripod can do almost anything a more expensive tripod kit can do, but at a fraction of the cost.

PIG0311-G Field Shooting Tripod Features:

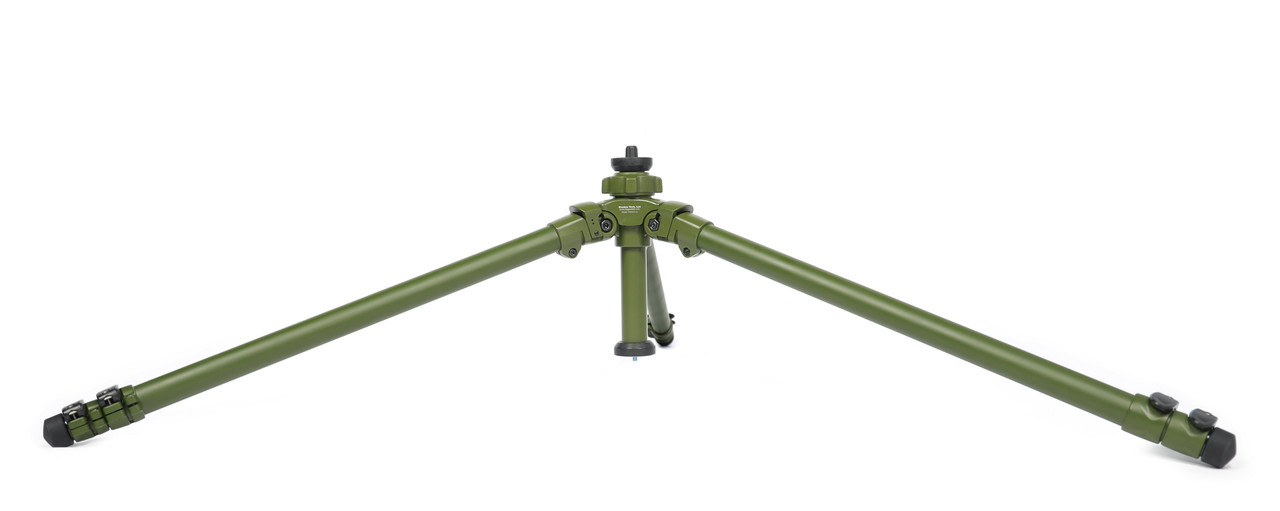

The center column allows the shooter to get down to a 11.5” high prone position.
The center column can rotate a full 360°.
A removable, load bearing hook has been added to the bottom of the center column to hang weight.
The tripod’s feet incorporate interchangeable rubber or spiked feet (both included in the box)
A heavy-duty 34 pound load capacity.
Lightweight magnesium body with aluminum legs.
Three section extending legs with adjustable cam levers.
Lightweight nylon carry bag included.
Matte OD Green Finish.

PIG0311-G Field Shooting Tripod Specs:

Max. Operating Height: 61 in. / 5.08 ft.
Min. Operating Height: 10.8 in.
Folded Length: 27.6 in. / 2.3 ft.
Max Center Column Extension: 5in.
Weight: 5.6 lbs.
Max. Load Rating: 34 lbs.
Leg Sections: 3
Leg Lock Type: User Adjustable Cam Levers
Center Column Type: 360 Degree Rotation
Leg Tip: Interchangeable Spiked & Rubber Feet
Mounting Thread: Interchangeable 1/4-20 & 3/8-16 Threads
